Equipment Pavilion

Tissue Machines and Related Apparatus

Tissue machines are evolving toward higher production efficiency, lower energy consumption, and simpler operation, while supporting customization and digital control. New through air dry (TAD) technologies enable greater bulk and absorbency, and refiners with higher precision produce more uniform pulp fibers, meeting diversified refining process requirements.

Valmet Fabrics (China) Co., Ltd.

Intelli and DCT200 tissue machines: offering the advantages of low energy consumption, high quality, and high operating speed. Leveraging the Valmet DNA data platform, full-process digital collaboration across stock preparation lines, paper machines, and converting lines is achieved, empowering efficient and flexible production.



ANDRITZ (China) Co., Ltd.

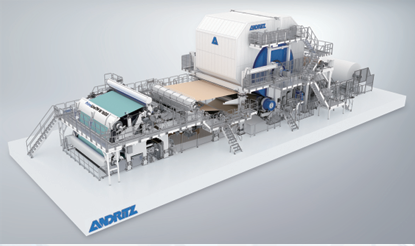

PrimeLineTM W 1600 economy wide tissue machine: with a width of approximately 5,600 mm and a maximum speed of up to 1,700 m/min, it is suitable for facial tissue, kitchen towels, napkins, toilet tissue, and other household paper grades. The equipment adopts a modular design concept, configurable with: PrimeFlow single-layer headbox and single-flow delivery system, PrimePress SPR vacuum press roll, and flexible air hood configuration options. While ensuring finished paper quality, this design effectively reduces steam and power consumption. The simplified TAD system layout also helps lower plant construction and civil engineering investment costs.





Toscotec

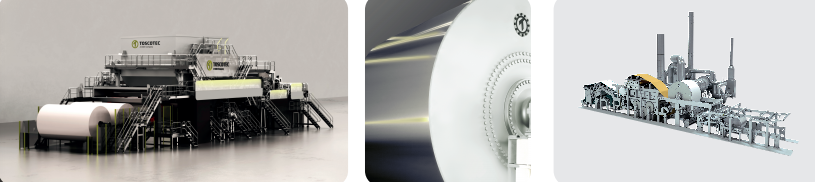

 AHEAD high-performance dry crepe tissue machine: precisely customizable according to different requirements to achieve high production capacity, high quality, and low energy consumption.

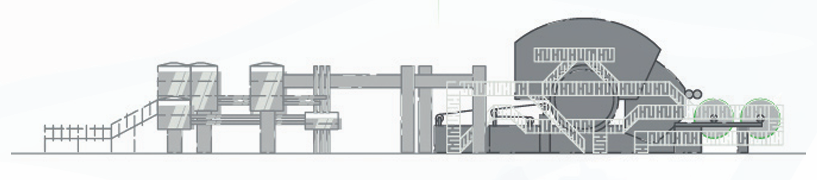

TADVISION innovative TAD technology: featuring a multi-cylinder serpentine layout and direct-flow TAD drying design, it enhances tissue bulk and absorbency, achieving higher production efficiency and lower energy consumption.





Guangdong Baotuo Technology Co., Ltd.

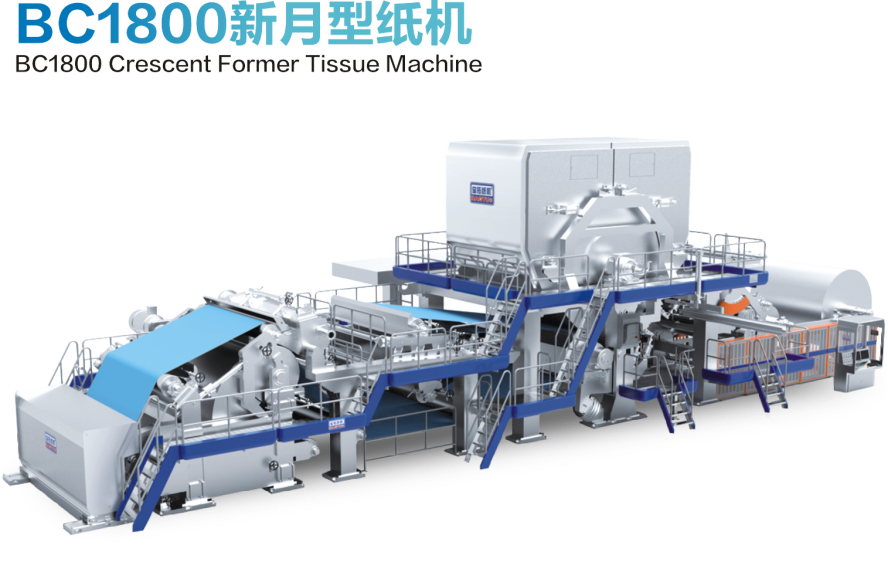

Baotuo BC1800 high-speed tissue machine: operating speed reaches 1,600–1,800 m/min, with strong adaptability in machine width. It features lower water, electricity, and steam consumption. Equipped with a digital cloud platform for intelligent management, the machine offers structural stability and simplified operation.





Zhengzhou Yunda Paper Machinery Co., Ltd.

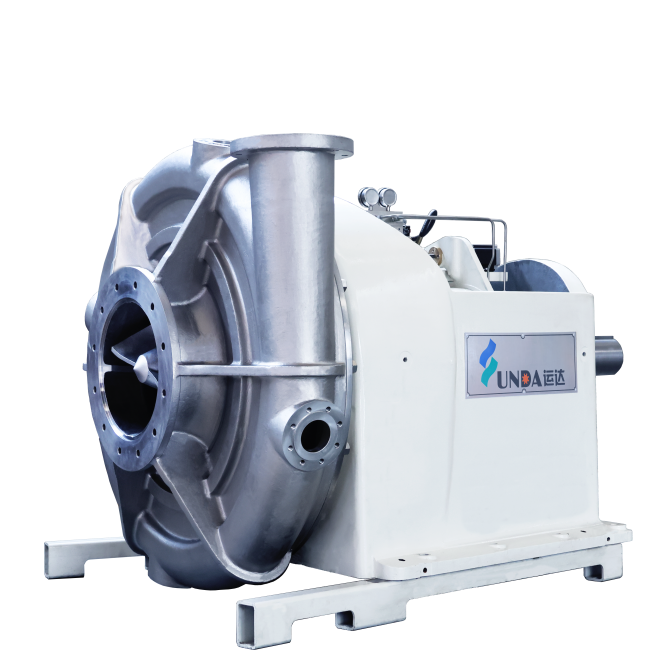

High-consistency refiner for tissue paper production: constructed with cast and forged components for durability, stability, and reliability. The rotor position is servo-hydraulically controlled with a precision of ≤0.01mm, ensuring uniform refining quality. At high consistency, the equipment promotes fiber fibrillation and brooming while effectively retaining fiber length, optimizing raw material formulation, and reducing costs.





Zhengzhou Leizhan Technology Paper Machinery Co., Ltd.

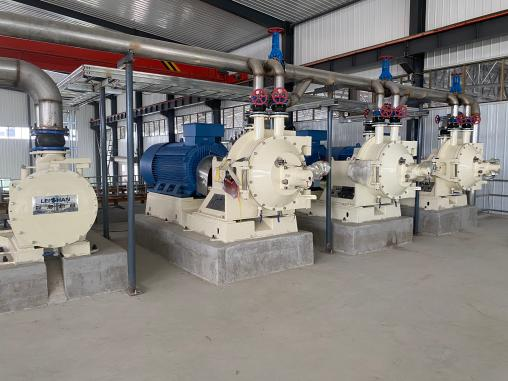

l Double-disc refiner: high-precision counter-rotating disc design and optimized stock inlet and outlet structure reduce energy consumption by approximately 25% compared with traditional equipment. This refiner produces more uniform pulp fibers, suitable for soft facial tissue and similar products.



l Eccentric pulper: generating strong vortex flow to improve pulping efficiency and reduce power consumption by more than 15%. The improved hydraulic flow channels minimize damage to the drive structure during bale feeding.





Shandong Chenzhong Machinery Co., Ltd.

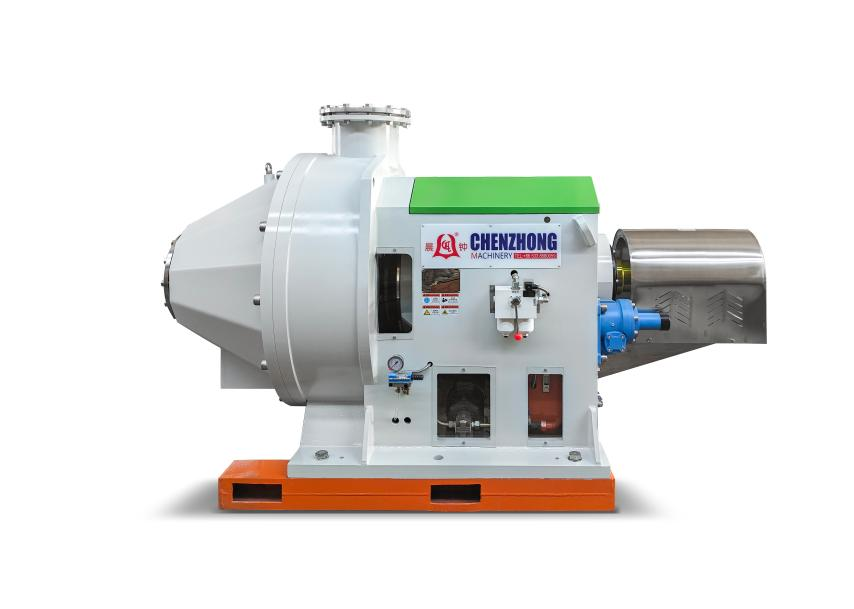

NCR series conical refiner: featuring axial stock inlet and radial outlet design with a conical refining zone. This refiner is capable of continuous refining of various purified pulps. It can be operated in series with double-disc refiners or independently. By selecting different bar-pattern plates and adjusting rotational speed and power, it enables free or viscous refining modes. Combined with PLC/DCS intelligent digital control, it achieves precise refining under constant power or constant energy consumption, ensuring uniform and stable pulp quality and meeting diverse refining process requirements.





Energy-saving Equipment

Energy-saving equipment features noise reduction, real-time monitoring, remote data transmission, and intelligent control, adaptable to diverse operational needs with stable and efficient performance. The application of permanent magnet direct-drive systems further reduces operating costs.



GSD (China) Co., Ltd.

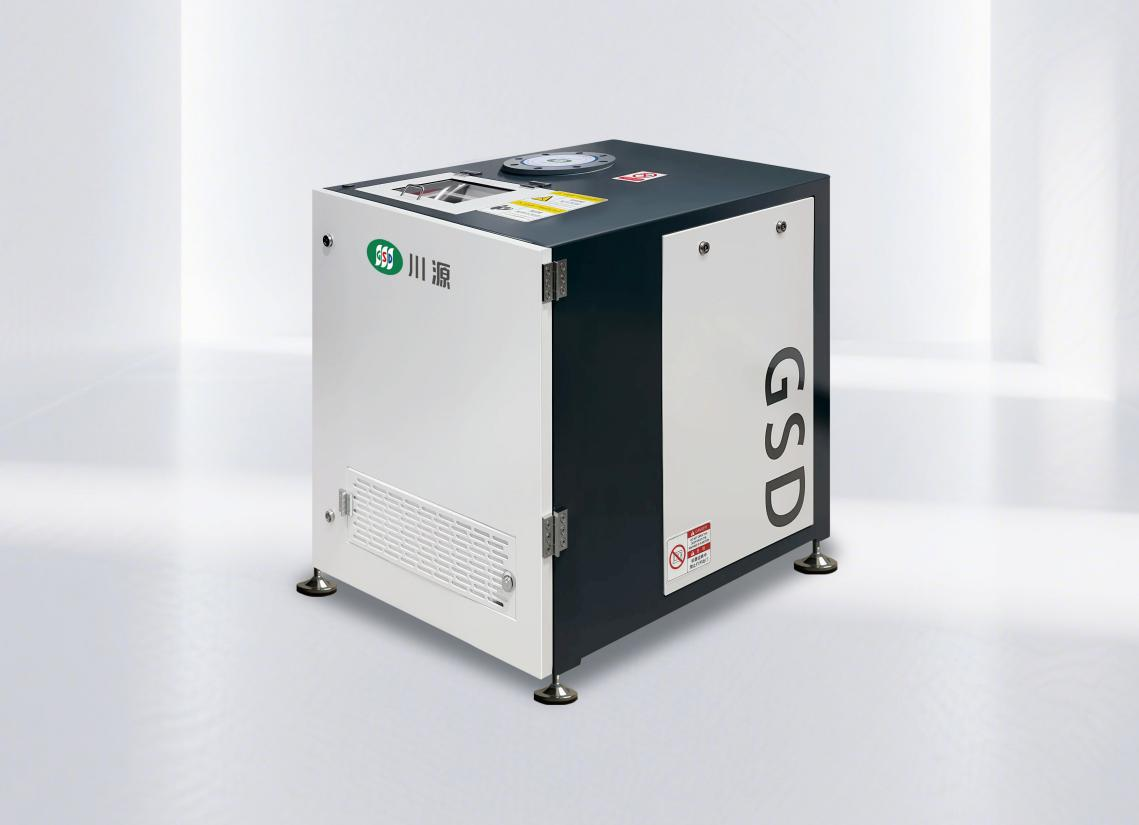

GVT air suspension vacuum pump: fully covering multiple processes in tissue production, including adsorption positioning, tension control, trim removal, vacuum dewatering, and drying. Compared with traditional water-ring vacuum pumps, it saves more than 30% energy, with overall equipment noise below 80 dB, ensuring low-noise and environmentally friendly operation. The equipment supports real-time monitoring of operating status and enables remote management and data transmission via mobile and PC terminals, facilitating centralized control and data analysis with stable, efficient performance.



Dongguan Yunfeng Electromechanical Technology Co., Ltd.

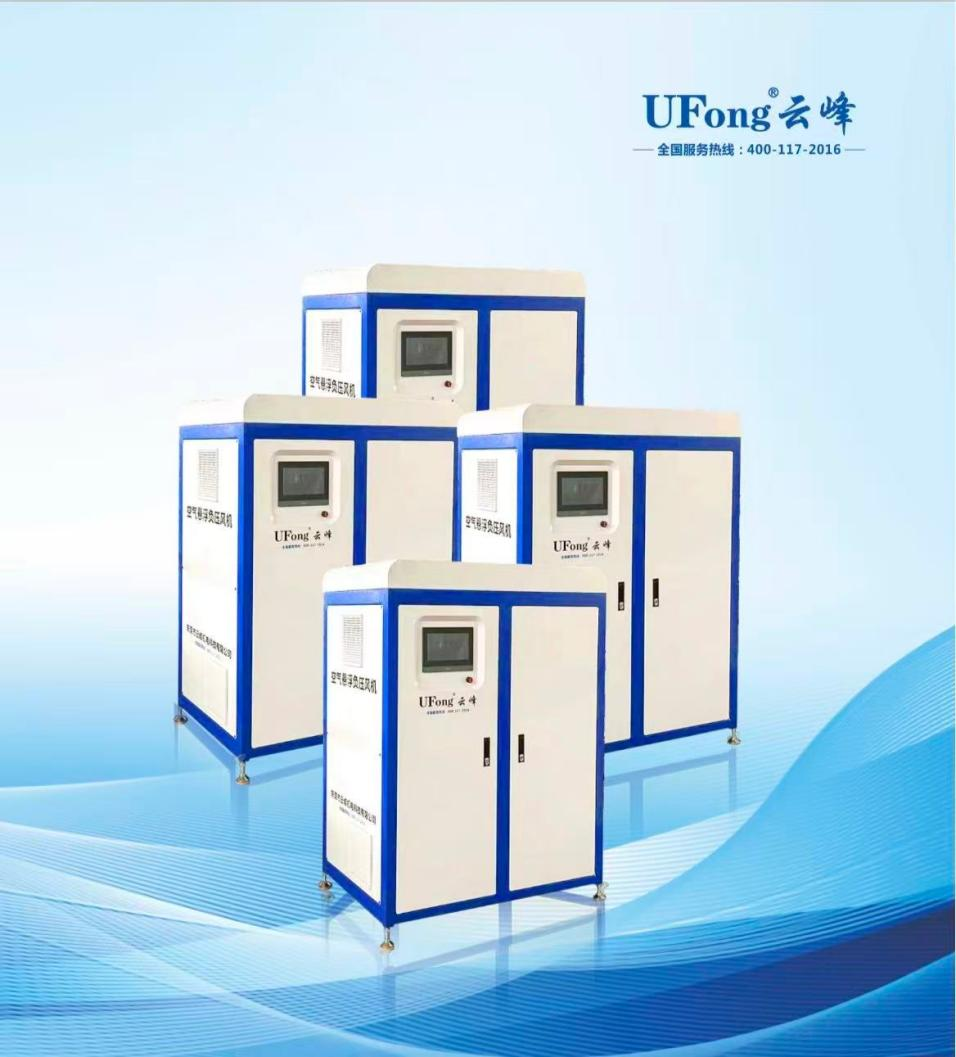

Suspension negative pressure fan: energy-saving, low-noise, and equipped with intelligent dust removal functionality. Energy savings range from 30% to 75%.





Shandong Xinhe Paper-Making Engineering Co., Ltd.

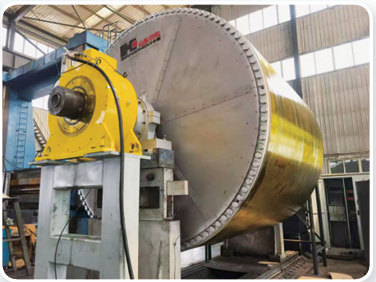

Dedicated permanent magnet direct-drive system: designed to replace the traditional “motor + gearbox” solution, suitable for high-speed tissue machines. It utilizes gearless direct drive, low-speed high-torque permanent magnet motors, and intelligent frequency control. The transmission efficiency exceeds 95%, achieving power savings of more than 10%. The system features a compact structure, maintenance-free operation, low noise, and low vibration. It performs reliably in high-temperature and high-humidity environments and can be linked with shoe press systems to enhance product quality while reducing operating costs.





Converting/Packaging Machinery for Tissue Products

Converting equipment is moving toward higher speed and efficiency, precise servo control, more stable folding and packaging, and rapid product changeover. Multi-functional machines compatible with multiple product categories incorporate automatic cleaning and constant-pressure adsorption functions, offering flexible layouts suitable for unmanned intelligent production. Intelligent warehouses enable full-process automation and digital closed-loop management, covering product conveying, packaging, palletizing, storage, and truck loading.



Foshan Baosuo Machinery Manufacturing Co., Ltd.

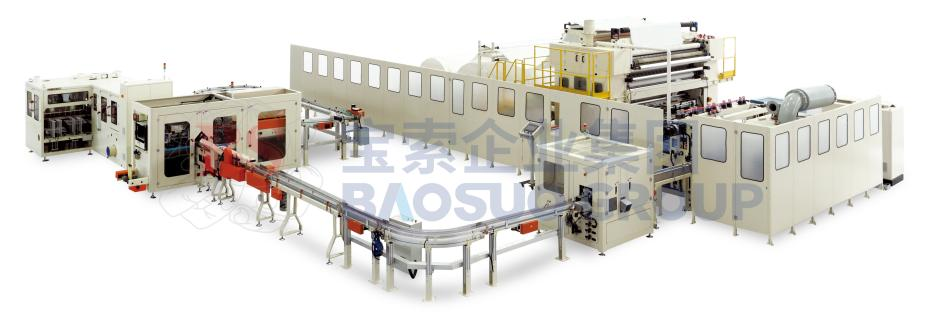

PG-3000 facial tissue folding (economic) production equipment: width: 3,000 mm; speed: up to 120 m/min, significantly improving production capacity. It is equipped with central constant-pressure technology for stable negative pressure and high energy efficiency. Optional configurations include positioning embossing, gluing lamination, bottom-dispensing systems, and external tail folding devices. Flexible processing and neat folding allow diverse layout configurations to meet different site requirements.

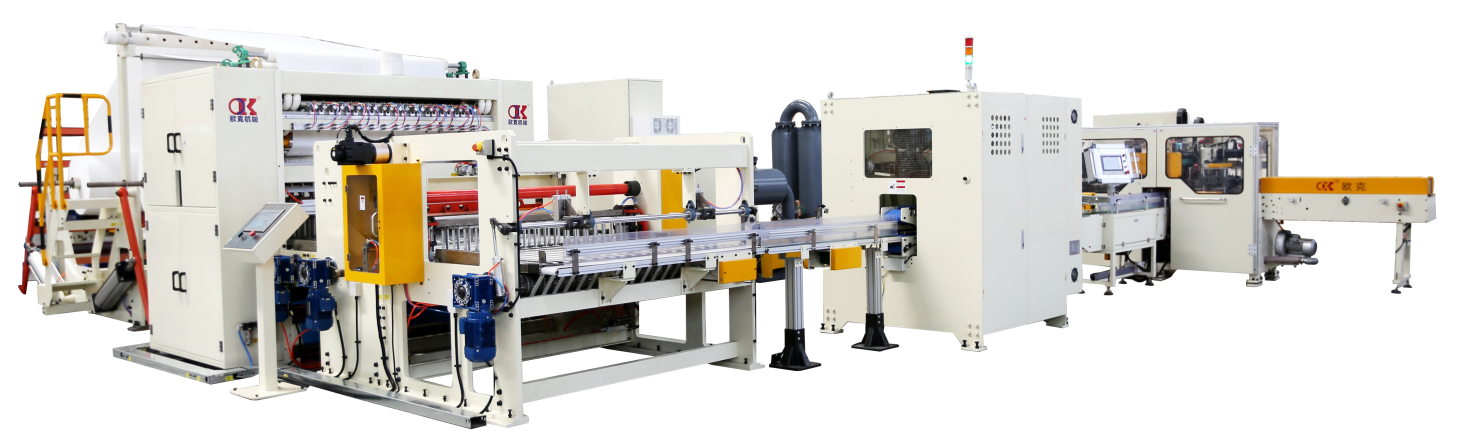

OK Technology Co., Ltd.

l  Six-roll soft-pull facial tissue production equipment: width: 1,400 mm; operating speed: 200 m/min. It integrates folding, cutting, small-pack packaging, mid-pack packaging, and case packing into a single line. This equipment can reach a daily capacity of 15-20 tons, featuring a compact design and high output. It can be integrated with intelligent logistics lines and coordinated with palletizing and handling robots to achieve unmanned intelligent production.



l Dual-channel handkerchief tissue production equipment: speed: 200–300 packs/min; equipped with high-precision embossing devices. It supports multi-specification handkerchief tissue production and is compatible with facial tissue and lotion tissue production.





Guangdong IMAKO Intelligent Equipment Co., Ltd.

Dual-use facial tissue and bottom-dispensing production equipment:

l Facial tissue folding machine: dual-output control, compatible with standard pull and bottom-dispensing packaging. It is suitable for low-basis-weight tissue, lotion tissue, and conventional facial tissue. It also supports one machine for multiple applications. The entire line adopts a full servo drive, integrated with AI vision inspection and a visualized production management system.

l Packaging machine: dual-purpose design compatible with bottom-dispensing and soft-pull mid-pack packaging. The speed is up to 70 bundles/min.

l Visualized management system: large-screen display for intelligent monitoring of production capacity, faults, and operational data.



Zhejiang Onepaper Smart Equipment Co., Ltd.

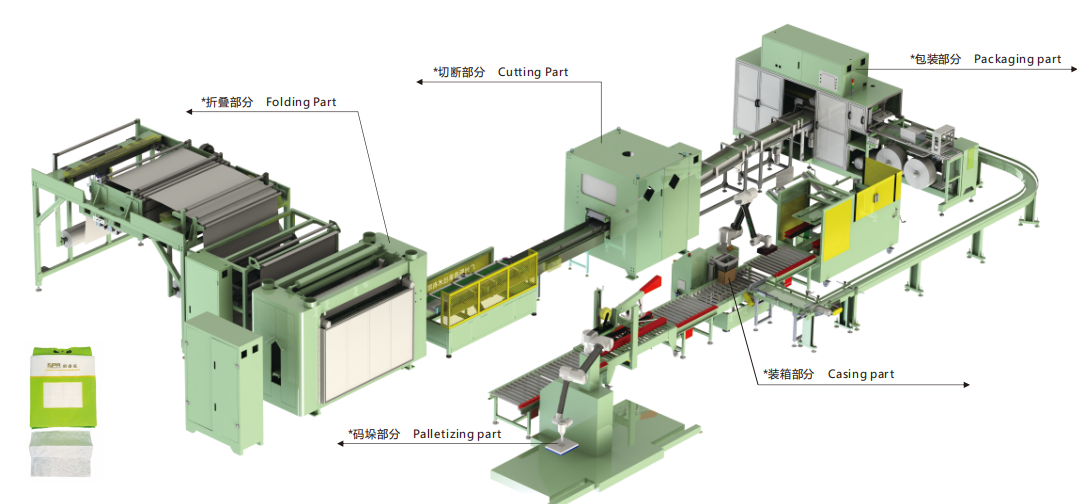

Fully automatic point-to-point four-sided embossed facial tissue/bottom-dispensing production equipment: automatically completing embossing, folding, cutting, packaging, case packing, and palletizing. Each workstation is equipped with IoT modules, enabling remote control, interconnectivity, and efficient coordination.





Liuzhou ZODE Mechanical Technology Co., Ltd.

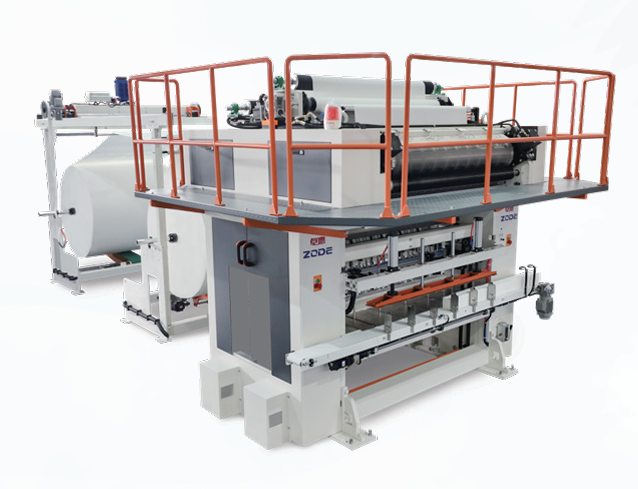

l Fully automatic four-side embossing folding machine: the embossing unit features an integrated structure, making specification changeover simpler than rotary systems. The overall roller length is shorter than traditional designs. Embossing and steel rollers are gear-connected, reducing surface wear and extending service life.

l ZD-D260S interfold-pull packaging machine: optimized with more than ten detailed improvements for smoother operation, lower noise, and stable performance.

l ZD-C45 interfold tissue mid-pack packaging machine: equipped with 14 servo systems, with a stable speed up to 40 packs/min, it delivers improved package appearance without bag breakage and convenient adjustment.





Dongguan Dongdi Automation Equipment Co., Ltd.

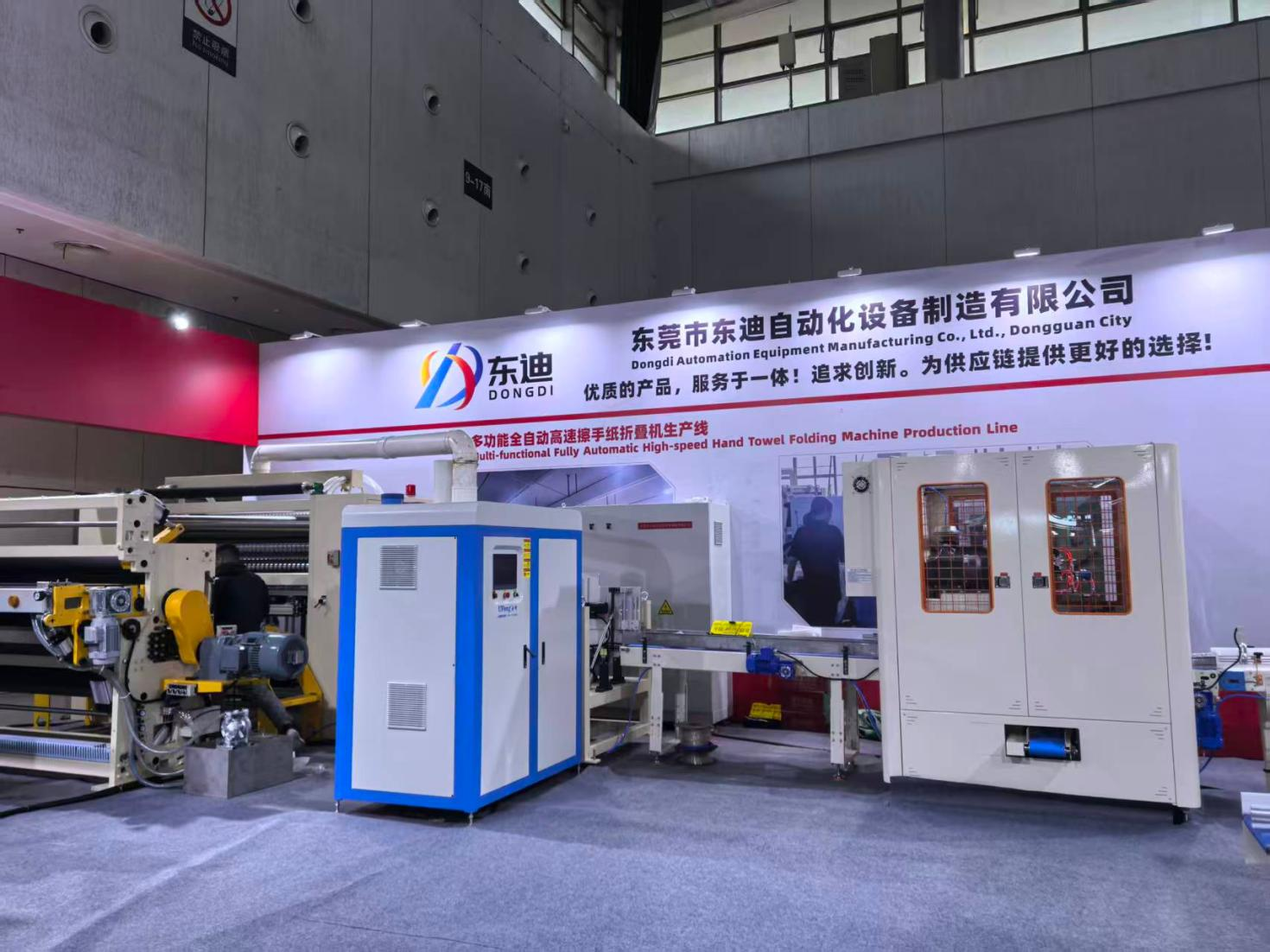

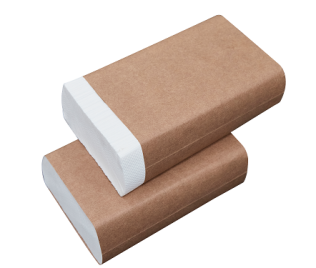

Hand towel folding machine: featuring constant-pressure adsorption folding and servo closed-loop control for precise folding and low reject rates. It supports multiple folding types (N/V/M). This machine supports convenient product changeover, with a maximum speed of 210 m/min and a capacity of 1,100 sheets/min. A modular structure combined with PLC and HMI ensures automated control and low operating costs.





Foshan Jinsuichang Machinery Equipment Co., Ltd.

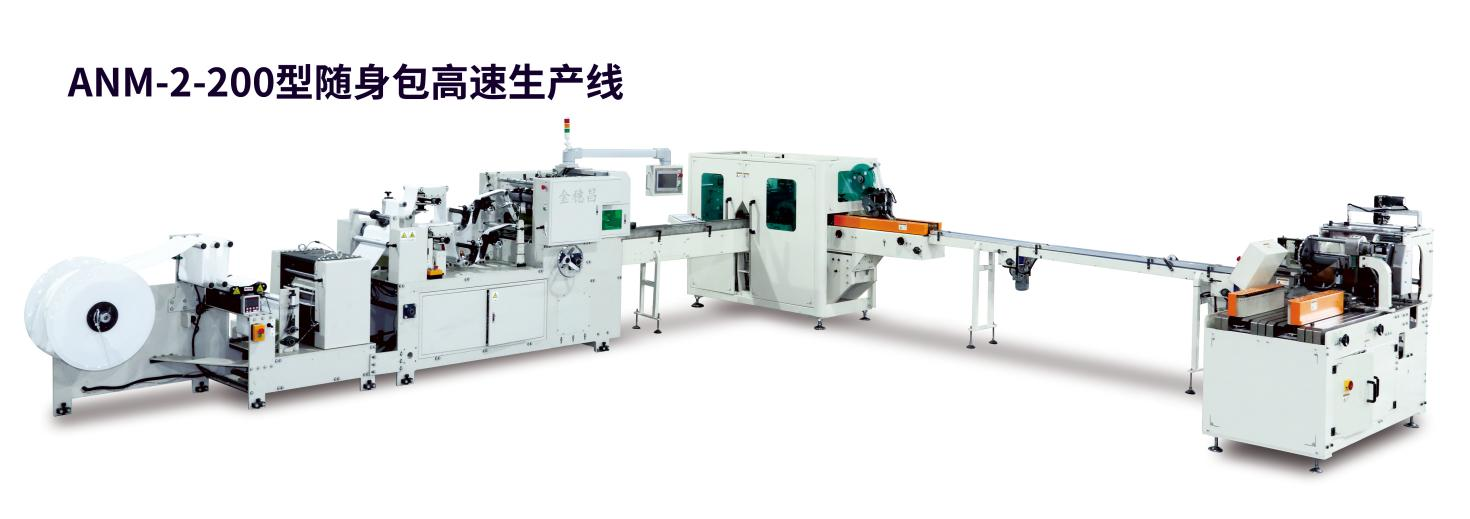

ANM-2-200 portable pack tissue high-speed production equipment: fully servo motor with bus control system for stable and efficient operation. Compatible with lotion tissue and cotton-soft wipes. It supports 7–30 sheets per pack. The production speed up to 1,500 sheets/min, offering strong compatibility and multi-purpose functionality.





Guangdong ZDS Technology Co., Ltd.

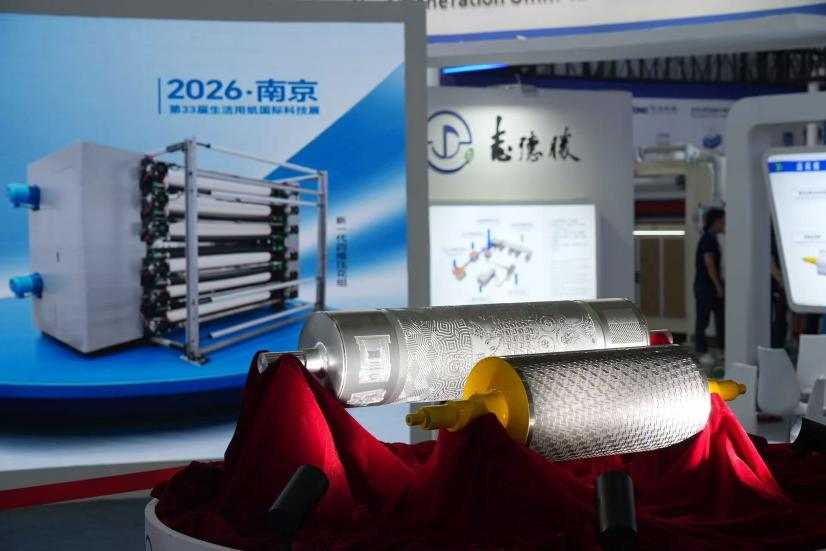

Digital 3D embossing roller and new-generation four-dimensional embossing unit: breaking through traditional embossing limitations, it enables the refined structural control and multi-layer collaborative design. By optimizing height, taper, and structural configuration, it enhances softness, bulk, and absorbency, meeting diversified and customized production needs.





Dongguan Ailixing Machinery Co., Ltd.

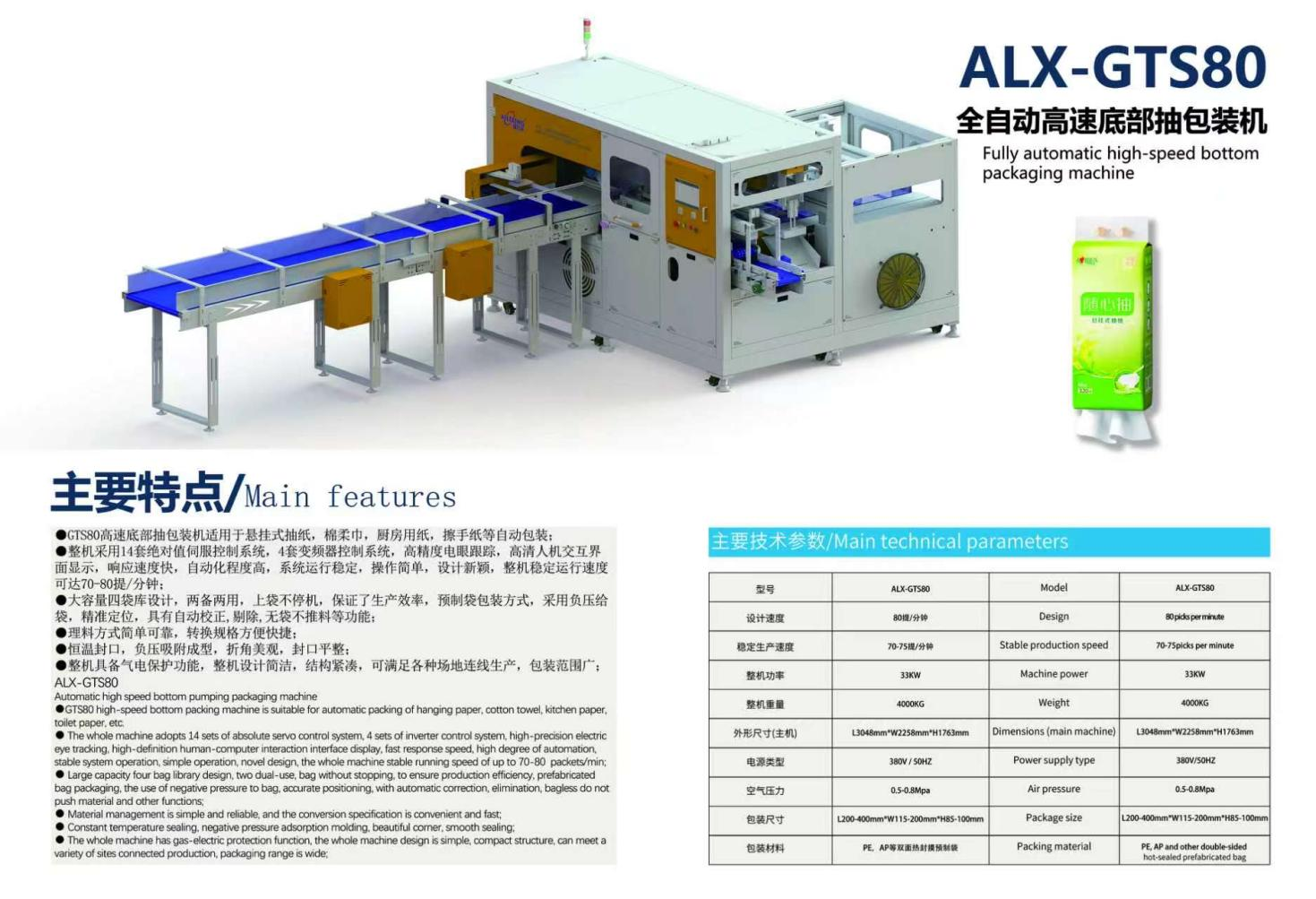

GTS80 high-speed bottom-dispensing packaging machine: suitable for suspended bottom-dispensing facial tissue, cotton soft towels, kitchen towels, and other products. Servo and frequency control systems ensure stable operation. The operating speed can reach 70-80 bundles/min. Equipped with four pre-made bag slots for continuous bag feeding without downtime. Features include negative-pressure bag feeding, automatic correction and rejection, and constant-temperature sealing, allowing convenient size changeover.







Baoding Xinjie Energy-saving Electronic Equipment Co., Ltd.

l Multi-layer multi-row interfold tissue mid-pack machine: maximum sealing width: 500 mm; equipped with compression and blocking functions to prevent loose packs and machine jams.

l Single-layer pop-up tissue mid-pack machine: maximum operating speed: 45 packs/min, improving efficiency.

l Bottom-dispensing packaging machine: taking dual push-rod bag feeding system, with the speed up to 70 packs/min.





Wenzhou Shengtai Machinery Co., Ltd.

Cartoning and case sealing machine: precisely controlled by a servo system with stable operation. The speed can reach 130–200 boxes/min. It supports rapid size changeover and accommodates multi-specification tissue packaging. The equipment is equipped with multiple detection and protection functions. In case of abnormalities, it automatically alarms and stops, effectively reducing material waste.





Dongguan Zhaoxiang Machinery Manufacturing Co., Ltd.

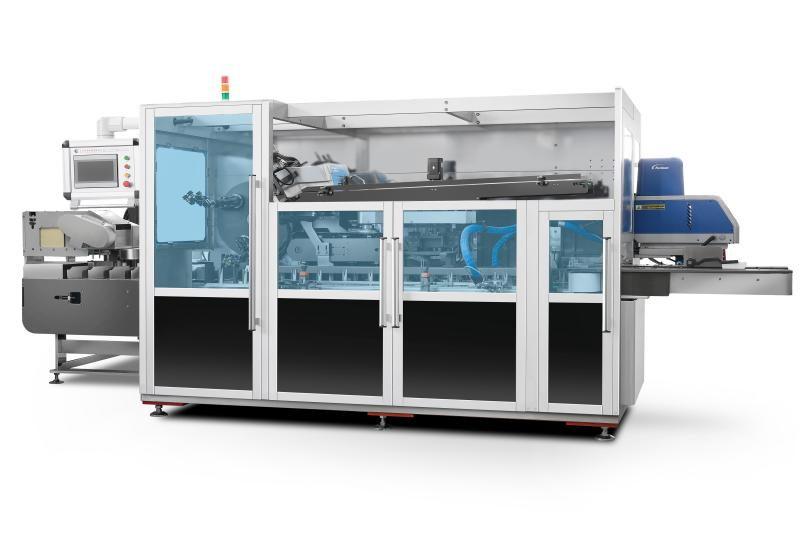

High-speed servo cartoning machine: fully servo motor control ensures precision. It is capable of quickly handling automatic cartoning and case sealing for multi-specification boxed products. The packaging speed is 60–100 boxes/min. It enjoys fast product changeover, with specification switching completed in 2–6 minutes.



Guangdong Yanhe Intelligent Machinery Co., Ltd.

Dual-outlet paper bag packaging machine: producing tightly packed and neatly finished packages. It is compatible with both paper bag and PE film packaging. The production speed is up to 30 packs/min.

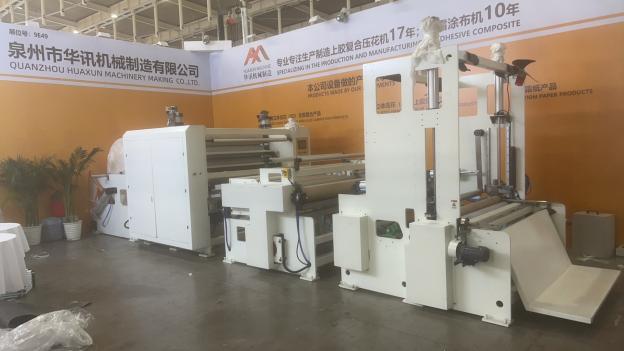

Quanzhou Huaxun Machinery Making Co., Ltd.

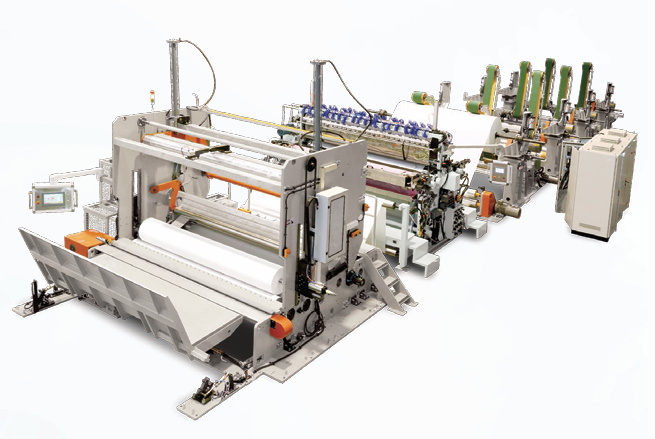

l Lotion coating and slitting machine: flexible and expandable, allowing integration of coating, printing, and slitting units. It is suitable for multiple processes and basis weights; multi-functional, capable of producing lotion tissue, printed lotion tissue, and other high-value-added products. This machine saves space, reduces costs, and improves efficiency.

l Double-sided 3D embossing and gluing laminating machine: engraving depth: 0.5–1.6 mm. It produces full, three-dimensional embossing with a soft hand feel. The machine can be directly connected to existing equipment without modification. It ensures firm lamination without delamination or deformation, with stable and uniform adhesive application.





Shenzhen Haina Laser Technology Co., Ltd.

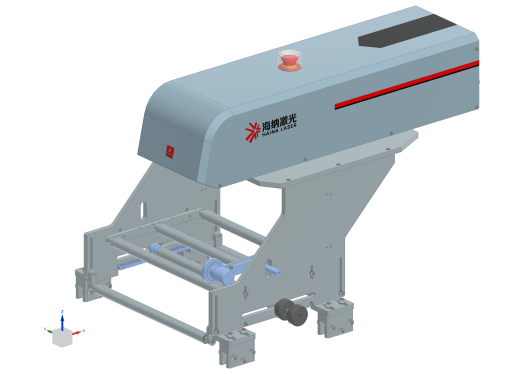

Integrated laser coding and opening machine: Using consumable-free laser coding technology with stable operation and long service life, eliminating downtime and reducing production costs while improving efficiency. Laser opening eliminates the need for tear knives, reducing tooling costs. It enables efficient changeover, labor savings, and adjustable, aesthetically pleasing easy-tear openings.





Changsha Chaint Machinery Co., Ltd.

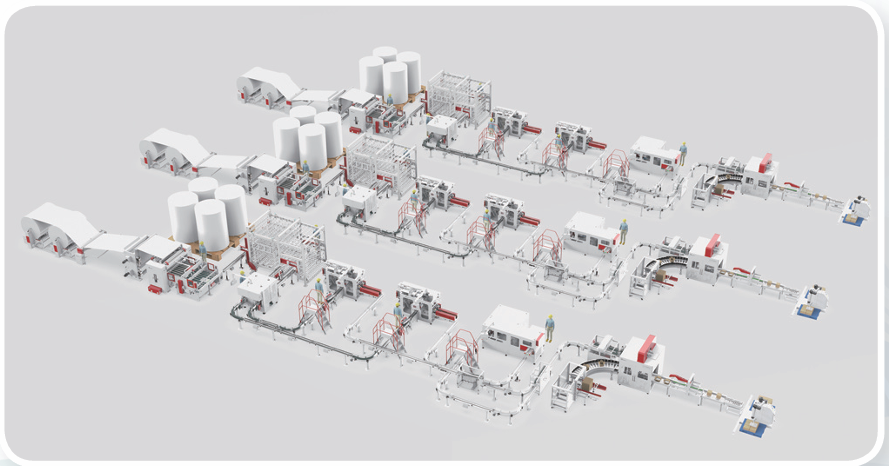

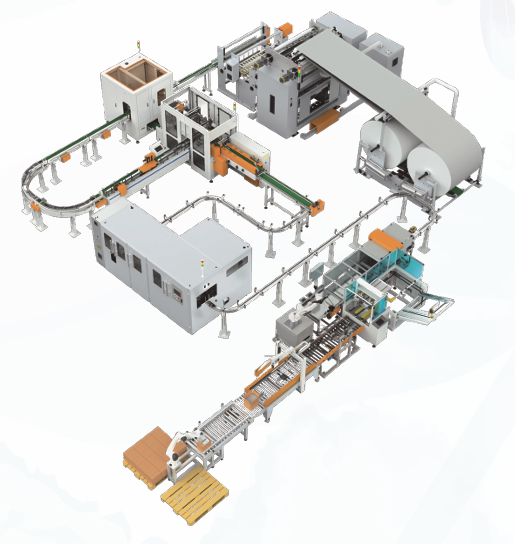

Smart Factory Construction: providing full-process automation, including automatic conveying and packaging of tissue reels after production, automatic conveying, palletizing, and storage of finished cartons, and integrated automatic truck loading via automated warehouses. It has established a full-chain digital closed-loop operational system and offers one-stop services covering hardware equipment, software systems, project implementation, and post-installation maintenance.





Printing Equipment

Printing equipment is evolving toward multi-functional integration, high definition, and high speed, featuring one-touch automatic cleaning and rapid plate change functions for convenient product switching. Printing equipment operates stably and is suitable for facial tissue, napkins, kitchen towels, and other product categories, balancing efficiency and quality.



Foshan Dechangyu Paper Machinery Manufacture Co., Ltd.

High-definition two-color/four-color printing machine: width range: 2,000–3,700mm, matching tissue machine widths. It is compatible with slitting rewinders, toilet tissue rewinders, and kitchen towel rewinders. The maximum speed is 400 m/min. For tissue paper products, it supports one-touch automatic plate cleaning without manual intervention, capable of completing cleaning in 1–3 minutes. Plate change can be completed within 30 minutes. The stable and reliable operation meets large-scale and diversified printing production needs.



Wenzhou Lisheng Printing & Packaging Machinery Co., Ltd.

Satellite-type integrated paper napkin printing machine: integrating five functions: printing, folding, embossing, calendering, and slitting, it supports 6-color or 8-color printing. It completes the entire paper napkin production process in a single line, delivering stable operation, high efficiency, and aesthetically pleasing finished products.



Liuzhou Lianyin Machinery Manufacturing Co., Ltd.

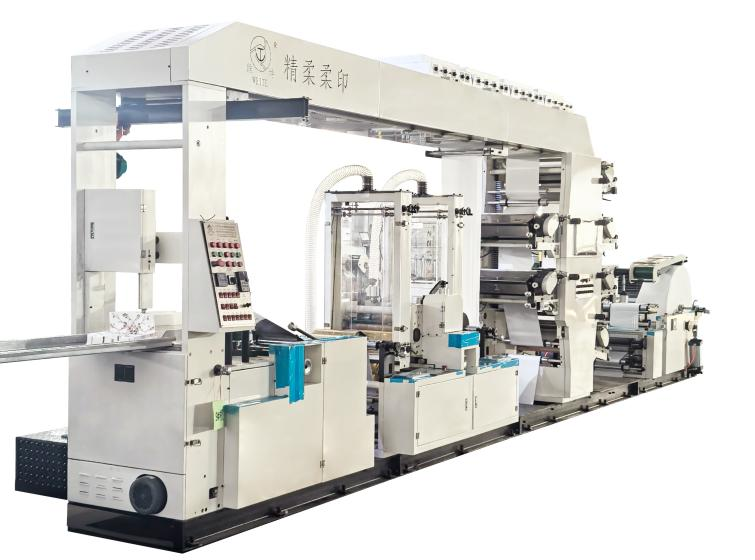

Color-printed paper napkin production equipment: operating speed up to 180 m/min; printing precision: 100 LPI; registration accuracy: ± 0.05 mm; folding accuracy: ± 0.5 mm. It supports inline hot stamping at speeds up to 100 m/min. The equipment also integrates calendering, six-color printing, drying, hot stamping, embossing, folding, and cutting into a fully automated single-pass system.



Hangzhou Xianghuai Machinery Technology Co., Ltd.

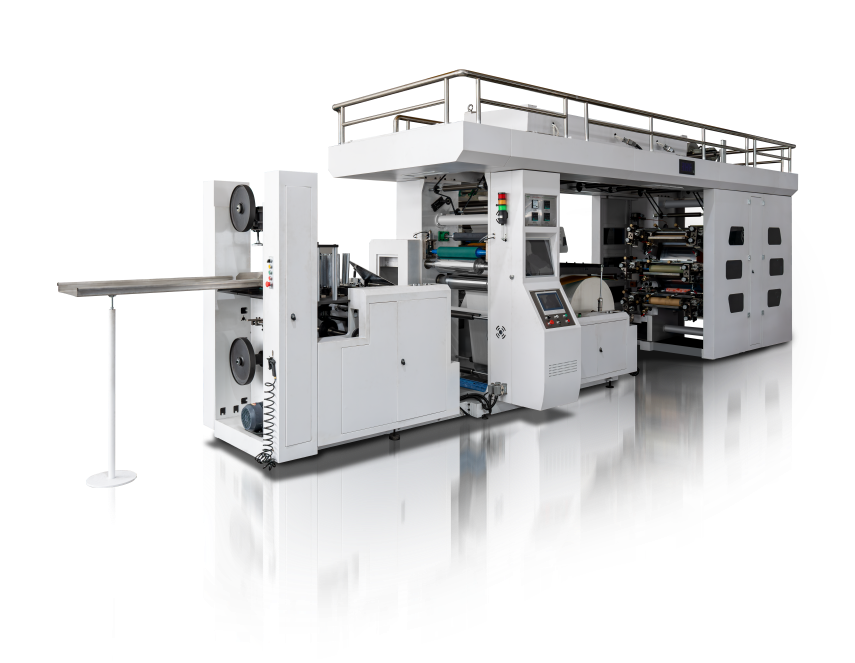

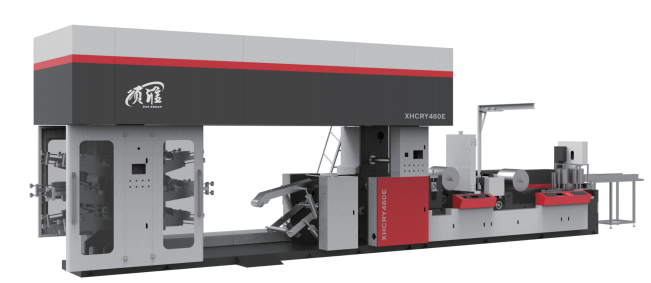

Integrated paper napkin production and packaging machine: combining 6-color printing, hot stamping, embossing, folding, slitting, and automatic packaging into one system with fully automated operation. The machine delivers efficient and stable performance.





Hygiene Products Equipment / Packaging Equipment

Absorbent hygiene products equipment: this kind of equipment enables unmanned material feeding and automatic material changeover, reduces energy consumption, and further enhances intelligent and automated production levels.

Jiangsu JWC Machinery Co., Ltd.

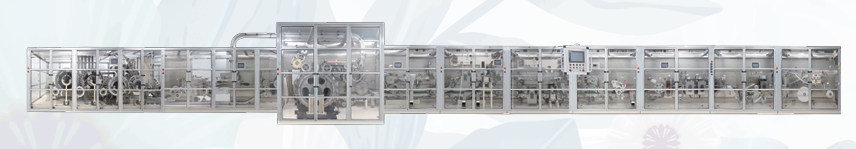

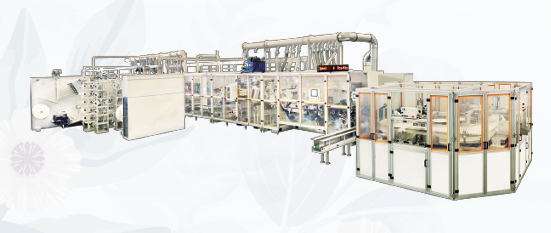

SMART.V30 unmanned intelligent sanitary napkin production equipment: stable production speed up to 1,500 pieces/min. It is equipped with UV full-area sterilization, ozone purification, and precise, constant-temperature, humidity-control systems, creating a fully enclosed, clean production environment. This equipment integrates AI vision inspection, predictive maintenance, and energy optimization technologies to enable intelligent, green production. It is also equipped with robotic arms and 5G intelligent forklifts to realize fully unmanned material feeding, material changeover, and finished product transfer.



Anqing Hengchang Machinery Manufacturing Co., Ltd.

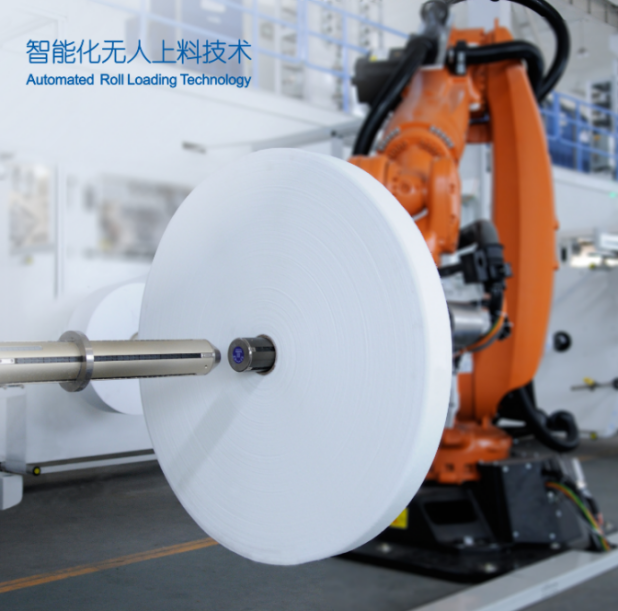

Intelligent unmanned feeding technology: the robotic arms enable automatic feeding and material replacement, precise placement of raw materials, and automatic splicing, effectively improving production efficiency.



Haina Intelligent Equipment International Holdings Limited

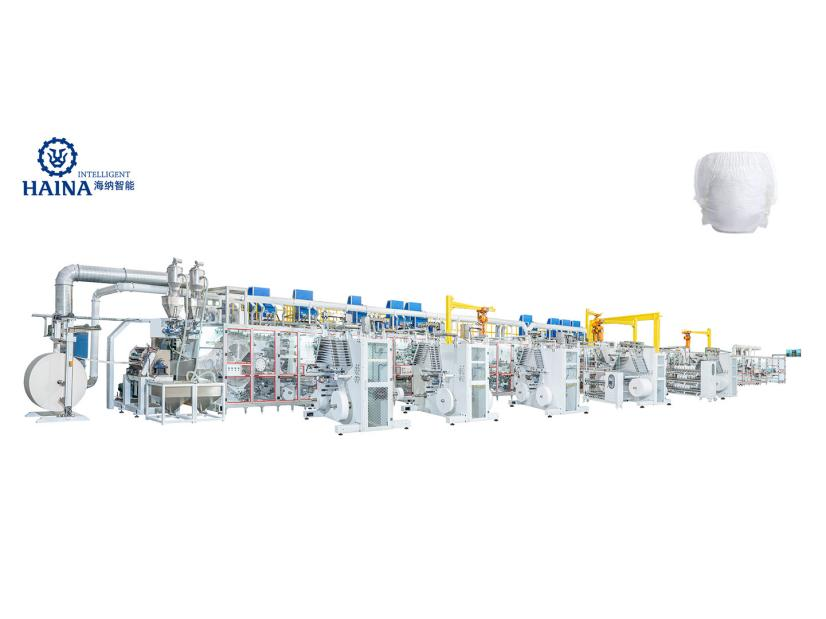

High-speed baby pull-up diaper production equipment: it utilizes ultrasonic welding technology. In comparison to traditional adhesive processes, the production efficiency increases by 30%, and energy consumption per unit decreases by 30%. The speed is up to 1,000 pieces/min.



Quanzhou Hanwei Machinery Manufacturing Co., Ltd.

Wrap-around elastic waistband baby diaper production equipment: the speed is up to 900 pieces/min. The SAP (super absorbent polymer) is added in two separate zones for more uniform distribution and faster absorption.



Guangzhou Xingshi Equipment Co., Ltd.

Fully automatic applicator-type tampon production equipment: stable production speed up to 350 pieces/min. It completes all tampon production processes in line, including automatic compression molding, automatic feeding of inner and outer applicators, assembly, and end-sealing. It is equipped with a fully automatic independent packaging machine and a multi-point image inspection system. The modular, flexible design enables convenient future upgrades.





Wet/dry wipe equipment: this kind of equipment is becoming higher-speed and more intelligent, with continuously improving product quality and operational stability.

RUFONG Machinery (Zhengzhou) Co., Ltd.

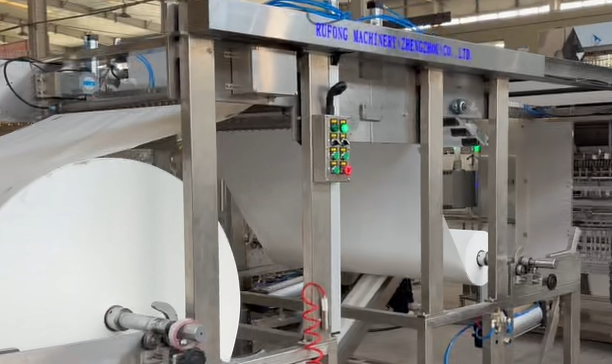

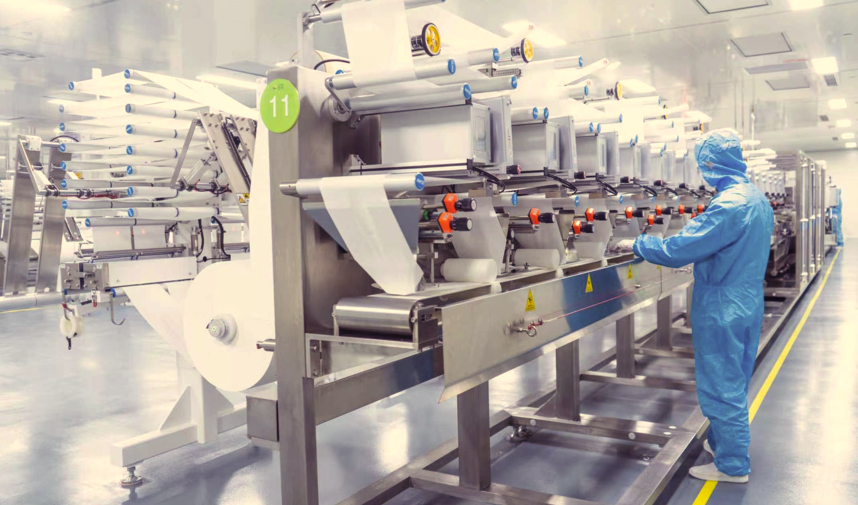

Intelligent wet wipes production equipment: the production speed is up to 140 m/min. It adopts a perforated inter-fold extraction structure. It is equipped with a single-sheet quantitative moistening and intelligent liquid replenishment system for uniform wetting and controllable liquid volume. The independently developed fifth-generation packaging machine is compatible with OPP film and double-layer PE film. This equipment integrates a vision defect detection and sealing heat-sensing dual inspection system, significantly improving the yield rate.



Zhengzhou Zlink Machinery and Equipment Co., Ltd.

Intelligent wet wipes production equipment: utilizing robotic automatic unpacking, AGV automatic conveying, and feeding systems to realize fully automated raw material supply. The maximum production speed is up to 150 packs/min. It is equipped with a vision inspection system for real-time online detection and rejection of defective products. Subsequent packaging is completed through automatic case erecting, packing, and palletizing systems, enabling full-process automated production.

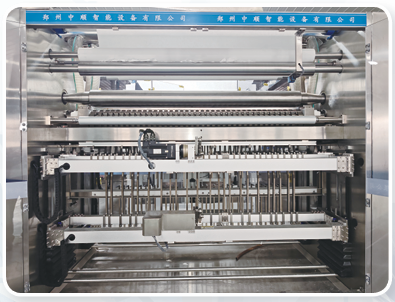

Zhengzhou Zhongshun Intelligent Equipment Co., Ltd.

High-Speed perforated wet wipes production equipment: the operating speed is up to 130 m/min (90 packs/min). It is equipped with an online precision liquid dosing system with liquid dosing error ≤ 2%, also configured with AGV carts for assisted feeding, enabling material changeover without stopping the machine and reducing labor costs.



ZheJiang SOULYAM Machinery Co., Ltd.

High-speed perforated wet wipes production equipment: specially designed for cooling wet wipes, and the operating speed can be up to 90 piece/min. The equipment is fitted with a liquid dosing system that precisely controls the ratio of cooling essence, ensuring uniform and stable cooling performance for each wipe. The packaging adopts a dual-stage heat sealing process, effectively locking in the cooling ingredients to prevent volatilization and leakage. The entire machine uses a servo intelligent drive system, ensuring stable high-speed operation. It supports one-click switching for multiple width specifications, enabling fast and convenient changeover.



Zhejiang Qixin Machinery Co., Ltd.

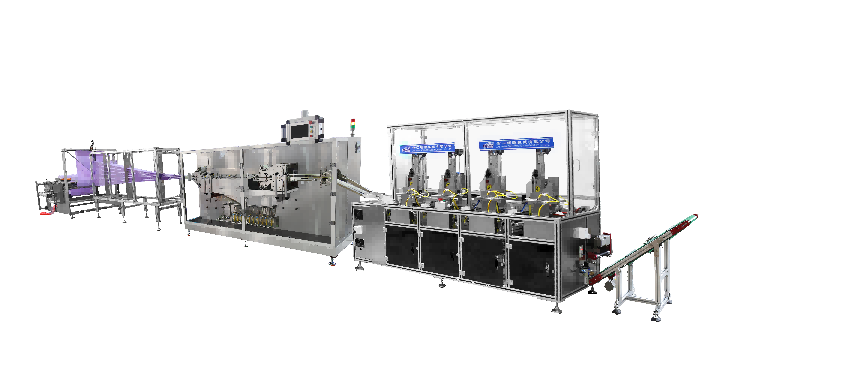

Fully automatic single-sheet wet wipes production equipment: the speed is up to 370 pieces/min. The entire process—raw material cutting, folding, moistening, packaging, cartoning, and stacking—is fully intelligent and requires no manual intervention, reducing production costs.



Guangzhou Surprise Technologies Co., Ltd.

Intelligent N-fold facial towel production equipment: the operating speed is up to 100 m/min. The folding machine adopts servo motor control to achieve standard N-type interfolding. The unwind stand is equipped with an automatic tension control system to ensure stable material feeding. From unwinding to stacking, the entire process is completed automatically. The machine features a stable structure and user-friendly operation.





Hygiene products packaging equipment: higher speed and greater flexibility, enabling full-process automation

Optima Packaging Machines (Shanghai) Co., Ltd.

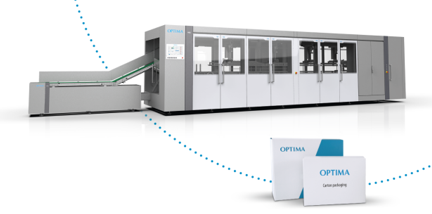

HSC high-performance cartoning solution: the maximum packaging speed is up to 180 boxes/min. It is flexibly adaptable to cartons and supports rapid switching among PE bags, paper bags, and cartons, offering strong versatility.







Guangzhou BST Intelligent Technology Co., Ltd.

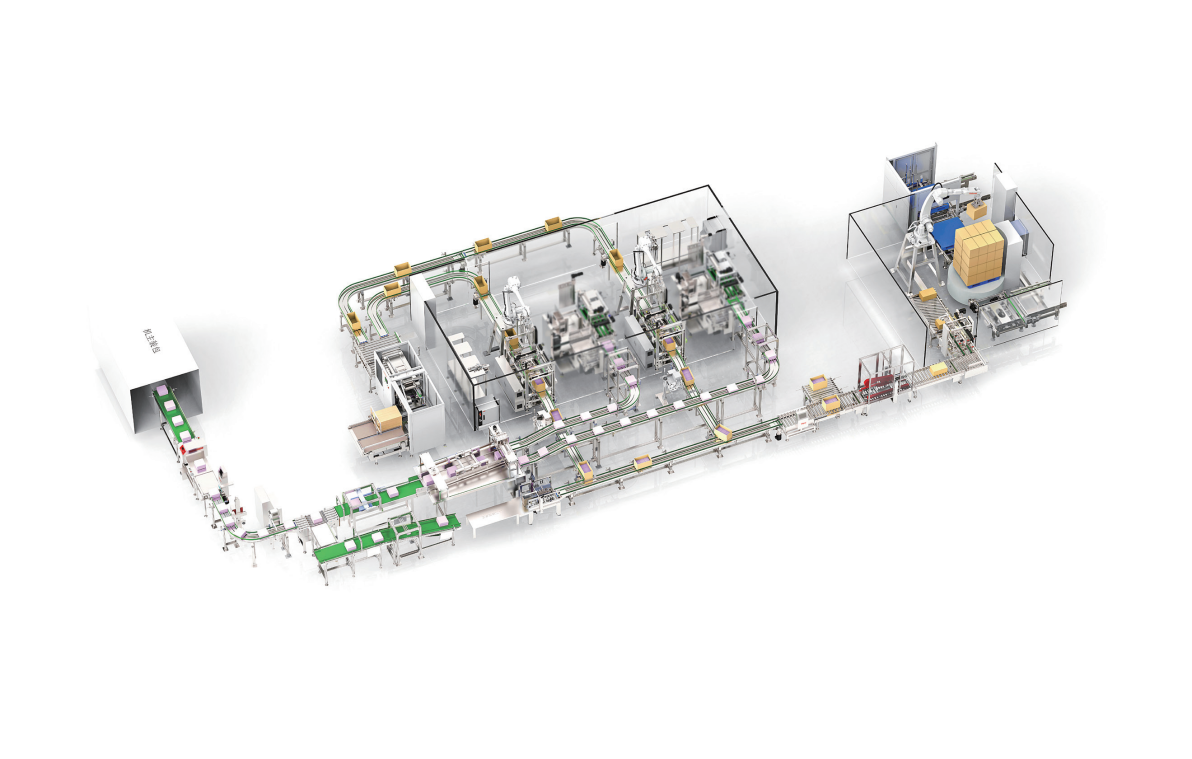

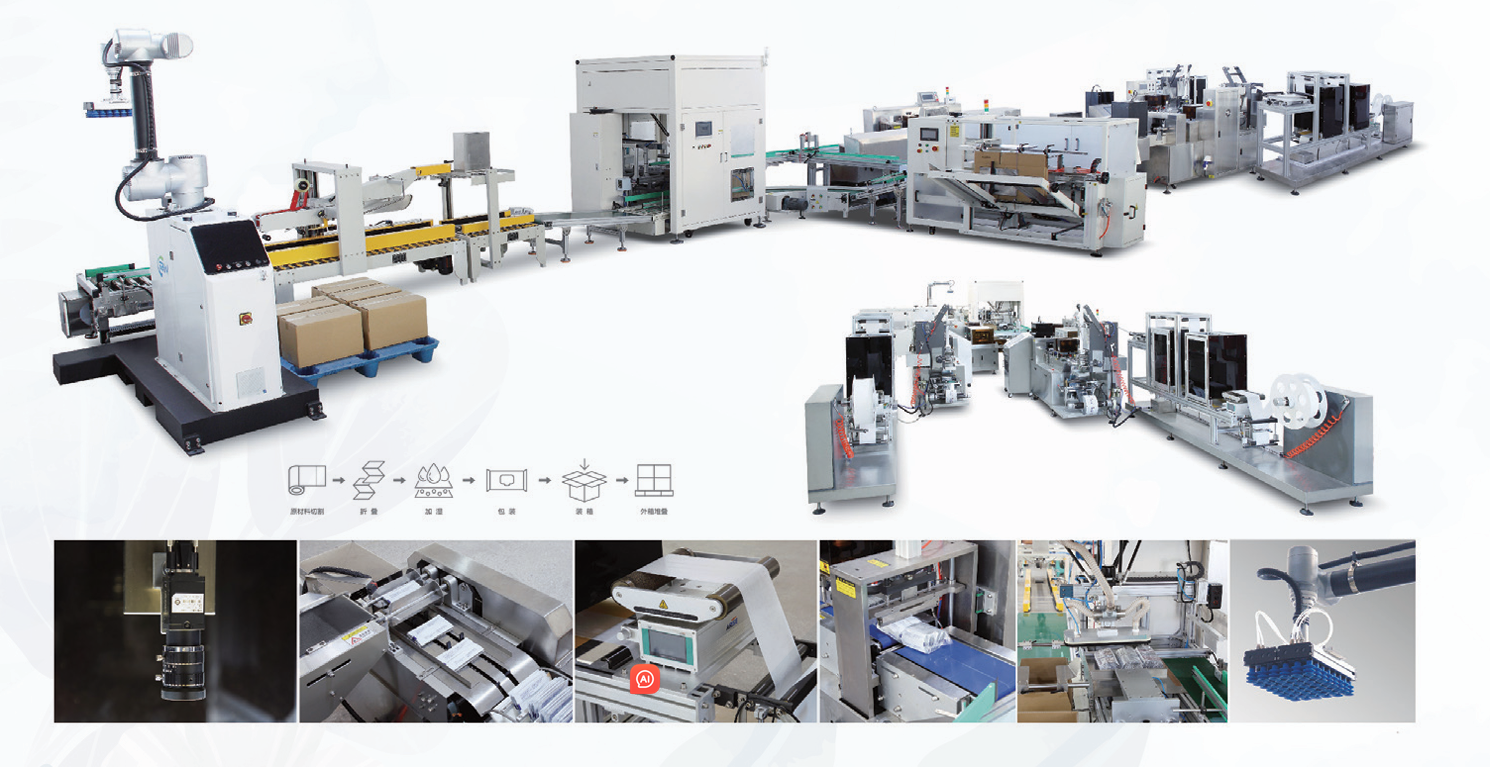

Fully automatic intelligent packaging solution for sanitary napkins/diapers: integrating multiple functions including laser coding, metal detection, weighing, and intelligent labeling, enabling full-process traceability and control. It supports one-click intelligent code switching. According to different product packaging specifications, robotic arms can be switched for automatic cartoning. It features easy and convenient operation.



Xiamen Broad Mechanical & Electrical Engineering Co., Ltd.

l Static push-type sheet arranging machine: equipped with AI vision inspection, effectively solving issues such as multiple sheets, missing sheets, and unattractive packaging. It significantly improves product quality and appearance.



l New-generation automatic case packer: the speed is up to 20 cases/min. It supports automatic number changeover with stable, high-speed case packing.





Shanghai Tominaga Packaging Technology Co., Ltd.

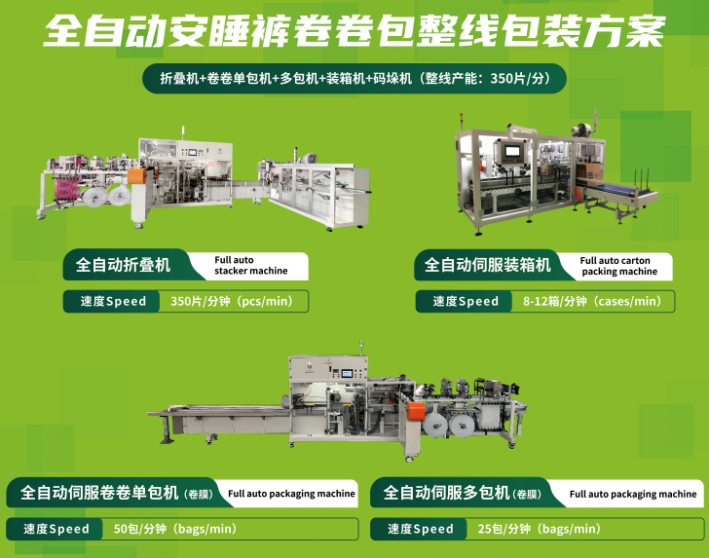

Fully automatic roll-type packaging line for women’s sanitary pants: the speed is up to 350 pieces/min. It can realize full-process automation from single-piece folding and rolling to packaging, palletizing, and warehousing. It is equipped with a full-servo control system for simple operation and high efficiency.

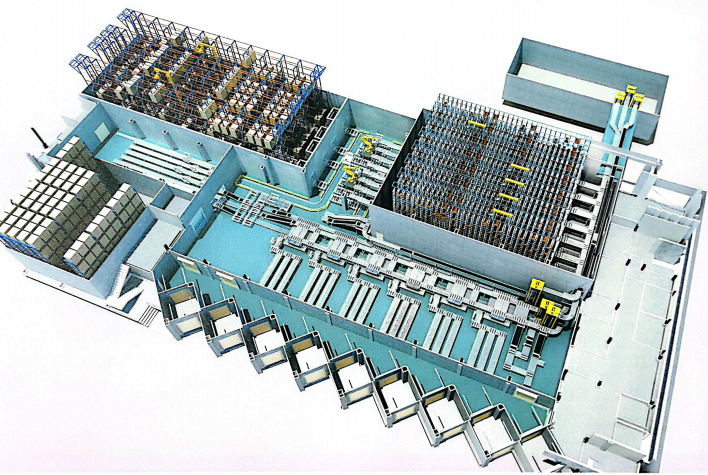

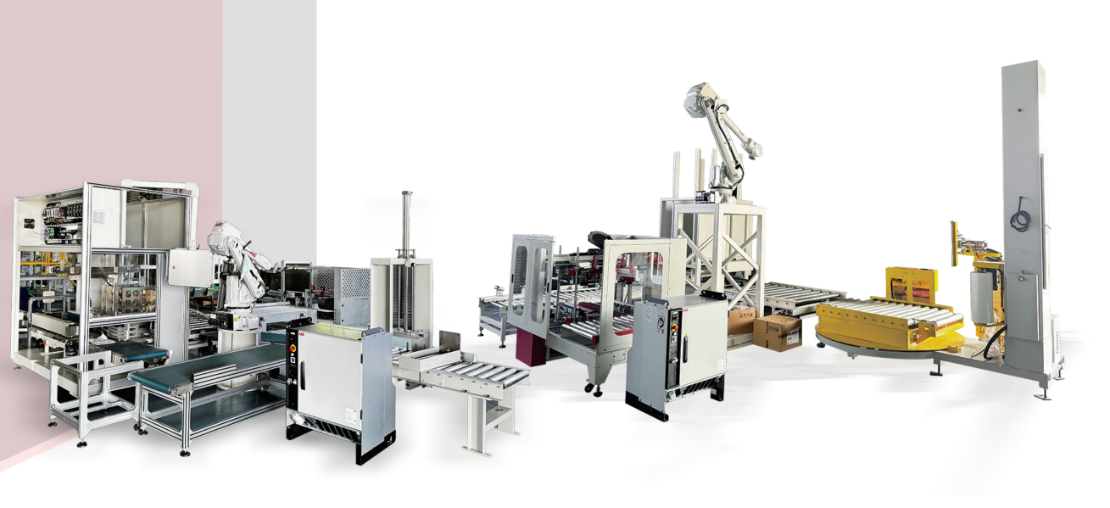

Intelligent logistics and smart factory solutions: improved efficiency and reduced costs



BZS (Beijing) Technology Development Co., Ltd., Jiangsu NOVA Intelligent Logistics Equipment Co., Ltd., and Shanghai Jeanray Intelligent Technology Co., Ltd. presented intelligent logistics solutions, shuttle systems, and smart factory systems at the Expo. Through comprehensive system design, these solutions empower industry enterprises by improving warehouse space utilization and enhancing production efficiency, thereby reducing overall production costs.
